LD-EI4260

LD-EI4260

  • 電動工具

技術參數(shù)

MODEL
  • LD-EI4260
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 23~25
  • NOMINAL
  • (V/DC)
  • 24
NO LOAD
  • SPEED
  • (rpm)
  • 11500
  • CURRENT
  • (A)
  • 0.6
RATED LOAD
  • SPEED
  • (rpm)
  • 10120
  • CURRENT
  • (A)
  • 3.2
  • TORQUE
  • (mNm)
  • 56
  • OUTPUT
  • (W)
  • 59.34
  • EFFICI ENCY
  • 77.39%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 9877
  • CURRENT
  • (A)
  • 3.65
  • TORQUE
  • (mNm)
  • 65.86
  • OUTPUT
  • W
  • 68.11
  • EFFICI ENCY
  • 77.72%
STALL
  • TORQUE
  • mNm
  • 466.67
  • CURRENT
  • A
  • 22.23

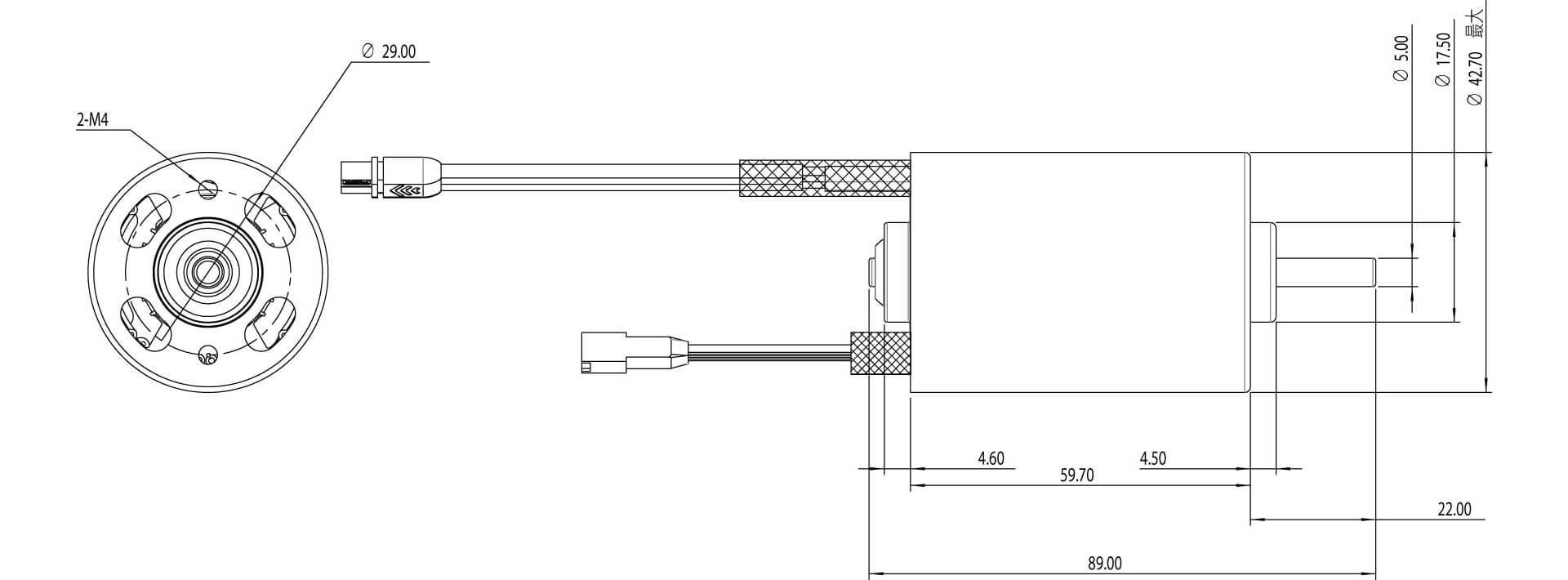

CAD圖紙

LD-EI4260
