LD-GR4820

LD-GR4820

  • 控制閥

技術(shù)參數(shù)

MODEL
  • LD-GR4820
OPERATING RANGE
  • (V/DC)
  • 24
NO LOAD
  • SPEED
  • (rpm)
  • 1.25
  • CURRENT
  • (A)
  • 0.012
RATED LOAD
  • SPEED
  • (rpm)
  • 1.05
  • CURRENT
  • (A)
  • 0.03
  • TORQUE
  • (mNm)
  • 2000
  • OUTPUT
  • (W)
  • 0.22
  • EFFICI ENCY
  • 30.54%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 1
  • CURRENT
  • (A)
  • 0.039
  • TORQUE
  • (mNm)
  • 2961.37
  • OUTPUT
  • (W)
  • 0.30
  • EFFICI ENCY
  • 31.89%
STALL
  • TORQUE
  • (mNm)
  • 12500.00
  • CURRENT
  • (A)
  • 0.12

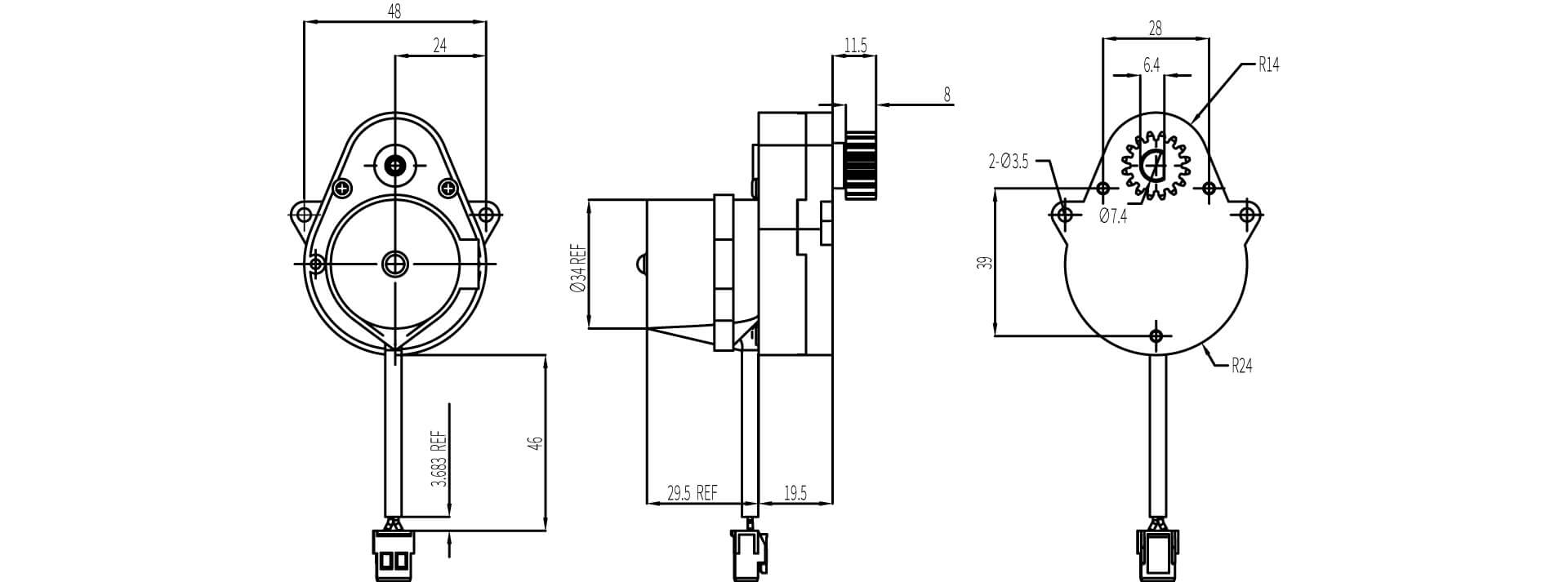

CAD圖紙

LD-GR4820
